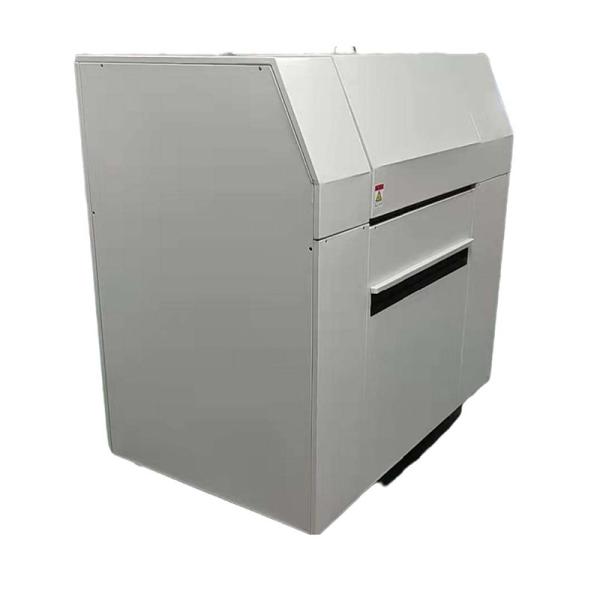

Laser Image Plotter for PCB image plotter film

Contact Now

High-speed automatic-laser photoplotter

Using multi-channel semiconductor laser light source with a resolution of 8000dpi

Nonlinear Electronic Correction Technology

Format optional: 20×26, 22×26, 24×28

Scope of application: high-precision/high-density multilayer board, precision etching, LCD and other film production

Various functions can be customized according to customer requirements





Model MACSETTER
78IP 88IP 68IPM
Resolution 8000dPi 8000dPi 4000/8000/12000dPi
Scan speed 5.3 min/sheet 6.5 min/sheet 8.5min/17min/30min/sheet
Minimum line width and line spacing 1mil/1mil 1mil/1mil 2mil/2mil
Laser Channel 32 laser 16 laser
Image Size 508x660mm 660x762mm 762x1500mm
Registration ±0.01mm ±0.03mm
Laser 32 Channel, 650nm 16 Channel, 650nm
Film Loading Sheet auto loading and unloading, online processing (max. 50 sheets) Single sheet manual loading and unloading
Raster Processing software rasterization
File RS274D,RS274X,PDF,PS,TIFF,DXF, BMP
Environment AC220V±2%, 20℃±10%,humidity 55%±10%
Structure External Drum
Film McLantis-PCB, KODAK ERN7, AGFA, FUJIFILM HPR-7S
Size 2300mm*1400mm*1150mm 2600mm*1450mm*1250mm 1500mm*100mm*1250mm
Weight 600KG 800 850
