Digital Roll to Roll label Printing Machine

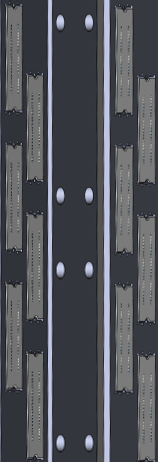

Double-row line print head arrangement

Using double-row printhead, McLantis digital machine can print 600*600dpi, 1200*600dpi, 1200*1200dpi high-quality exquisite patterns, and can expand the printing width according to user requirements. With minimum 2.5pl ink dot, McLantis digital machine ensures high precision and high-quality continuous printing at high speed, which can achieve 70 meters/min.

Reversing and rewinding function

McLantis digital machine can feed paper in the forward direction or rewind it in the reverse direction. It can print variable data for the second time. It only needs a short amount of raw material to adjust the registration, accurate setting, reducing waste and saving cost. Reverse the paper roll and the machine can print the reverse side of the paper roll.

Modular system

The unwinding part of McLantis digital machine can be expanded for coating and corona treatment. The winding part can be expanded to add lamination and proof system.

Applicability to various printing material

Support a variety of materials inkjet printing, coated paper, metal film, art paper, coated and uncoated paper, all kinds of adhesive, PP, PE, PET film,

Color labels and variable data are printed at one time

Color labels and variable data are printed at one time without plate making and multiple overprinting, thus reducing the process and saving the cost.

Independent ink supply station

McLantis independent centralized ink supply station is adopted. Ink and cleaning liquid are supplied in a centralized way, so that monitoring is convenient, ink adding operation is easier, and ink can be simply and quickly added without stopping the machine.

Quick-dry flexible LED curing UV ink

Bright flexible and quick-dry UV ink with high shading degree is better than traditional printing in weatherability. abrasion resistance. chemical resistance and water resistance.

CMYK + White ink + Digital UV Varnish achieves different levels of gloss and glazing effect by controlling different combinations.

Printhead automatic cleaning

When the machine is in standby or inkjet failure, the headstock will automatically return to the maintenance position to complete the cleaning of the spray holes and the bottom plate and return to the printing position, so that each spray hole is in a perfect state to ensure the printing quality. When the machine is not in working station, the headstock will automatically return to the maintenance position and buckle on the ink pad to keep the seal to prevent dust from entering and ink from solidifying and blocking the spray hole.

Perfect continuation of pattern after printing pause

By the unique control system, the pause in printing will not cause mis-printing or pattern breakage. Data and patterns can be connected perfectly without waste.

Negative pressure and ink circulation technology

Unique negative pressure and circulating ink supply system, constant heating and heat preservation technology ensure that ink will not precipitate, ink supply and ink jet are stable and consistent in the printing process, continuous high-speed printing without cleaning and maintenance, and high-speed and high-quality printing requirements are ensured.

Simple operation system

McLantis digital printing control system is simple and easy to operate, which can monitor the ink status, the working state of the nozzle and the running state of the equipment. All the running status of the machine can be done easily on software.

Wide color expression

McLantis UV printing has a wider color gamut. Without complicated plate-making or ink mixing spot color systems, McLantis digital printing machine can handle labels with subtle color differences with ease and achieve natural effects.

Digital Roll to Roll label Printing Machine Images
